Pressmaster 4320-0613 Embla VBC

6,753

Embla VBC is a self adjusting stripping and cutting tool, 0.1-4 mm²/AWG 28-12, V-blade.

SKU: 4320-0613 Category:

Description

Features & Benefits

  • Tool-less interchangeable stripping cassettes allow a wide and diverse stripping capacity
  • Widest stripping capacity of any tool of its type
  • Durable, integrated wire cutting capability
  • Cutting capacity: Flexible wires, 10 mm²/8 AWG. Rigid wires, 1.5 mm² /16 AWG
  • Fine adjustability for thin or thick insulation, without damage to wire conductors
  • At the end of the stripping function, the stripping blades open and remain open to facilitate easy and snag free wire removal from the tool
  • Ergonomic: strong, durable, and comfortable ergonomic design
  • Replacement stripping cassettes and cutting blades available
  • Reliable: Frame and mechanism life span exceeds 150,000 cycles (tested with 1.5 mm²/AWG 16 PVC cable)

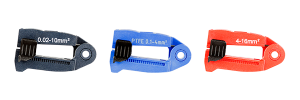

    All three cassettes (grey, red and blue) are available as separate items.

Technical Data

Length 191 mm/7.52″
Width 20 mm/0.79″
Height 90 mm/3.54″
Weight 136 gr/0.3 lb
Wire Size 0.1-4 mm2 / AWG 28-12
Stripping dimensions mm/mm2: 3-18 mm/adjustable
Stripping dimensions inch/AWG 0.12-0.71”/adjustable
Cable PVC/PTFE and similar
Description Self-adjusting cutting and stripping tool for electrical installation and equipment wires in PVC and PTFE insulation. V blade knifes for easier strip cycle with hard insulations
Life span, cycles 150,000 (tested with 1.5 mm²/AWG 16 PVC cable))
