Pressmaster 4320 – 0691 – Embla 16

7,833

Embla 16 is a self adjusting stripping and cutting tool, 4-16 mm²/AWG 12-5, O-blade.

SKU: 4320–0691 Categories: ,

Description

Features & Benefits

  • Tool-less interchangeable stripping cassettes allow a wide and diverse stripping capacity
  • Widest stripping capacity of any tool of its type
  • Durable, integrated wire cutting capability
  • Cutting capacity: Flexible wires, 10 mm²/8 AWG. Rigid wires, 1.5 mm² /16 AWG
  • Fine adjustability for thin or thick insulation, without damage to wire conductors
  • At the end of the stripping function, the stripping blades open and remain open to facilitate easy and snag free wire removal from the tool
  • Ergonomic: strong, durable, and comfortable ergonomic design
  • Replacement stripping cassettes and cutting blades available

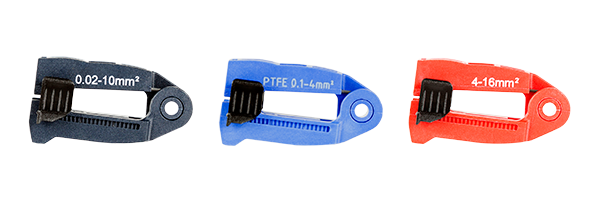

  • Reliable: Frame and mechanism life span exceeds 150,000 cycles (tested with 1.5 mm²/AWG 16 PVC cable)All three cassettes (grey, red and blue) are available as separate items.

Technical Data

Length 191 mm/7.52″
Width 20 mm/0.79″
Height 90 mm/3.54″
Weight 136 gr/0.3 lb
Wire size 4-16 mm2 / AWG 12-5
Stripping dimensions mm/mm2 3-18 mm/adjustable
Stripping dimensions inch/AWG 0.12-0.71”/adjustable
Cable PVC
Description Self-adjusting cutting and stripping tool for electrical installation and equipment wires in PVC insulation
Life span, cycles 150,000 (tested with 1.5 mm²/AWG 16 PVC cable)
